Pursuing Reliable Outdoor Detection
Detecting Intruders Outdoors for Early Warning
One of the key concepts that OPTEX has long focused on in security is Early Warning.
The purpose is to detect intruders before they reach a building or protected asset, allowing action to be taken at an earlier stage.
Early detection makes it possible to do more than simply trigger an alarm. It allows security teams to check the situation through surveillance cameras, issue warnings to intruders, and take action sooner to stop an intrusion from progressing and help prevent damage.
For this reason, OPTEX has developed sensors to detect intruders outdoors, including along site perimeters, around buildings, and near windows and entrances.
However, the value of Early Warning is not simply about detecting an intrusion earlier.
It is important to reliably detect real intrusions while minimizing false alarms caused by events that are not security threats. Achieving the right balance between these two factors is essential. This reliability of detection makes Early Warning more effective.
The Importance of Reliable Outdoor Detection
Outdoor environments contain many potential causes of false alarms, including moving vegetation, small animals, and light.
If sensor sensitivity is lowered simply to reduce false alarms caused by these factors, human detection performance may also decrease, increasing the risk of missing an intrusion that should be detected.
For reliable outdoor security, it is therefore important to maintain high human detection performance while minimizing false alarms caused by environmental factors.
OPTEX has continued to refine its detection technologies with this balance in mind, improving areas such as lens design, detection area design, and signal processing.
Detection Technologies for Reliable Outdoor Security
Improving the reliability of outdoor security requires more than achieving a balance between human detection performance and false alarm reduction. It is also important to develop detection technologies with actual operating conditions and installation requirements in mind.
OPTEX has continued to refine its sensing technologies by addressing a wide range of challenges found in outdoor environments around the world.
How can people be distinguished from potential causes of false alarms?
How can the effects of environmental changes, such as light and moving vegetation, be reduced?
How can stable detection performance be maintained in harsh environments?
How can products be designed to maintain their performance while also being easy for installers to install and adjust?
Addressing each of these challenges and continuing to build on these technologies helps improve the quality and reliability of outdoor security.
The Triple AND Logic featured in the new TXI Series, launched in 2026, is also part of this ongoing development.
Triple AND Logic is our new detection technology developed to provide more reliable outdoor detection by reducing false alarms caused by small animals while maintaining human detection performance.
Triple AND Logic in the TXI Series

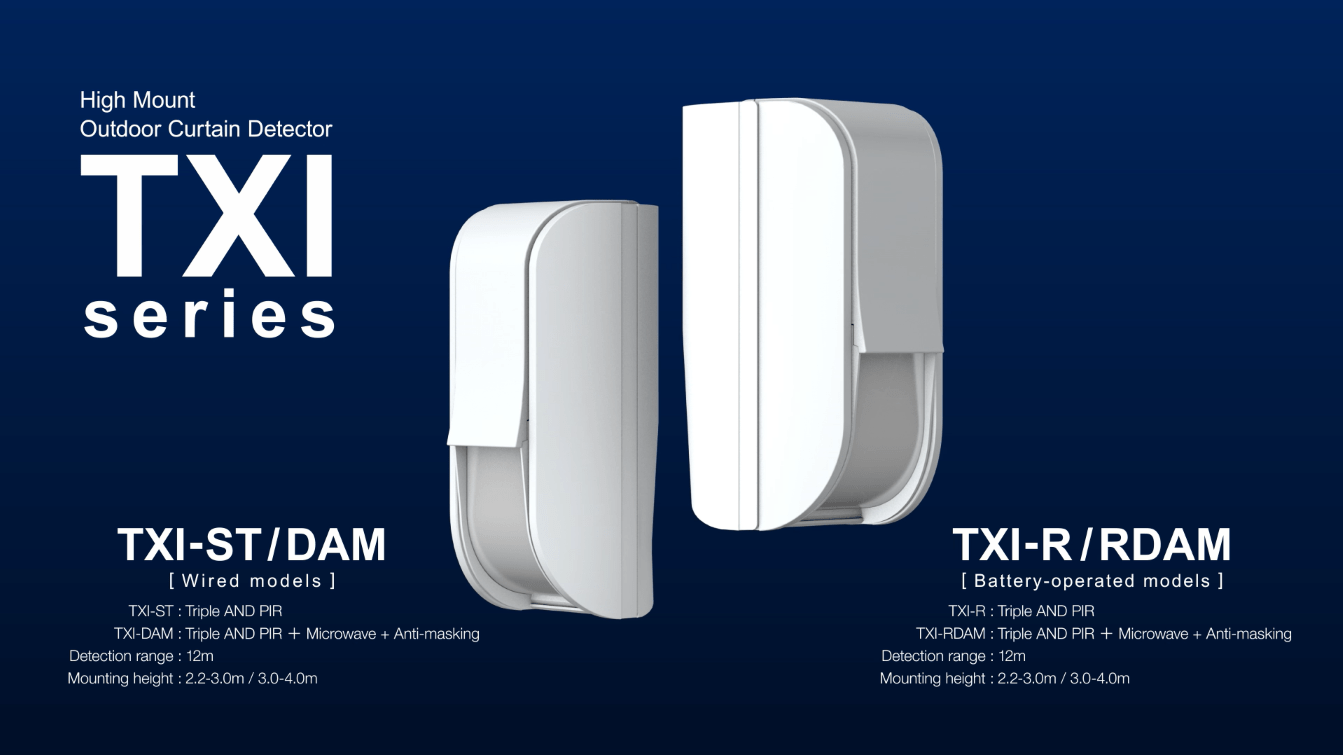

The TXI Series is a range of high-mount outdoor curtain PIR sensors designed to protect areas such as building walls, windows, and entrances.
It features OPTEX’s Triple AND Logic, which reduces false alarms caused by small animals while maintaining human detection performance.
In general, with outdoor PIR sensors, accurately distinguishing between people and small animals can be difficult, especially when the sensors are installed at higher positions. Therefore, achieving a balance between human detection performance and resistance to false alarms is an important factor.

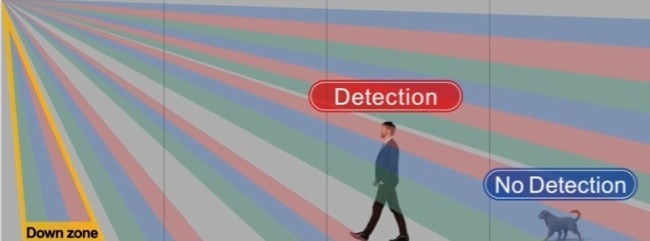

Triple AND Logic uses three detection zones and triggers an alarm only when the detection conditions are met in all three zones.
This unique detection logic accurately detects people while reducing false alarms caused by small animals, achieving a high level of both human detection performance and pet tolerance.
In addition, the detection areas are optimized according to the mounting height, providing stable detection performance across a wide mounting range of 2.2 to 4.0 meters.
Summary: Reliable Detection for Early Warning
To make outdoor detection more reliable, it is important to accurately detect real intrusions while minimizing false alarms caused by environmental factors.
Through sensing technologies developed for a wide range of outdoor environments, OPTEX has continued to pursue both human detection performance and resistance to false alarms.
Triple AND Logic is one of the technologies developed from this approach.
OPTEX will continue to pursue reliable detection technologies to detect outdoor intrusions earlier and more reliably.
