Data Center Case Study: Protect Critical Assets with Proactive Perimeter Security
Data centers are essential infrastructure for our daily lives today. To protect critical IT infrastructure, robust physical security systems are not optional—they are a fundamental requirement. Even a brief intrusion can lead to costly downtime, data theft, and loss of service reliability. To prevent such risks, security systems must deliver precise detection and real-time response before any damage occurs. This is achieved through a multi-layered approach—from the outer perimeter to the server room—integrating access control system, intrusion detection sensors, CCTV, and alarm monitoring for maximum protection.
In this project, strengthening the Perimeter Intrusion Detection System (PIDS) was a key priority to detect unauthorized access at the earliest stage by identifying threats from the outermost layer. Beyond the essential protection that PIDS provides for data centers, OPTEX proposed its Proactive Video Monitoring Solution to enhance the overall security integrity, supporting compliance with data center security standards and protecting critical assets against data theft and operational disruption. The integration of high-accuracy outdoor intrusion sensors with CCTV enables instant alerts and visual verification, ensuring that security teams can respond immediately and maintain continuous, reliable service for customers.
Security Challenges Identified at This Data Center
Enhance Perimeter Security
Prevent unauthorized access to critical IT infrastructure by detecting intrusions at the earliest point—the perimeter fence—with highly dependable sensors.
Real-time Alert and Visual Verification
Ensure immediate response by sending real-time sensor alerts and instant CCTV footage to the server room for quick decision-making.
Seamless integration of CCTV and Sensors
Achieve smooth integration between intrusion detection sensors and CCTV systems for efficient monitoring.
Reliable security operations across separate buildings
Despite the monitoring room and server room being located in different buildings, the system provides seamless cross-building integration, allowing security staff to access video footage and alerts in real time without delay and ensuring fast, coordinated responses.
OPTEX Proactive Video Monitoring Solution for Early Response to Intrusion
OPTEX’s Proactive Video Monitoring integrates high-accuracy intrusion sensors with CCTV for instant alerts and visual verification, enabling rapid response before damage occurs. This system provides real-time alerts along with immediate visual confirmation, allowing security personnel to assess situations quickly, make informed decisions, and prevent potential damage before it happens.
System Components for this Data Center
1. Intrusion Detection Sensor: REDSCAN Pro RLS-3060V

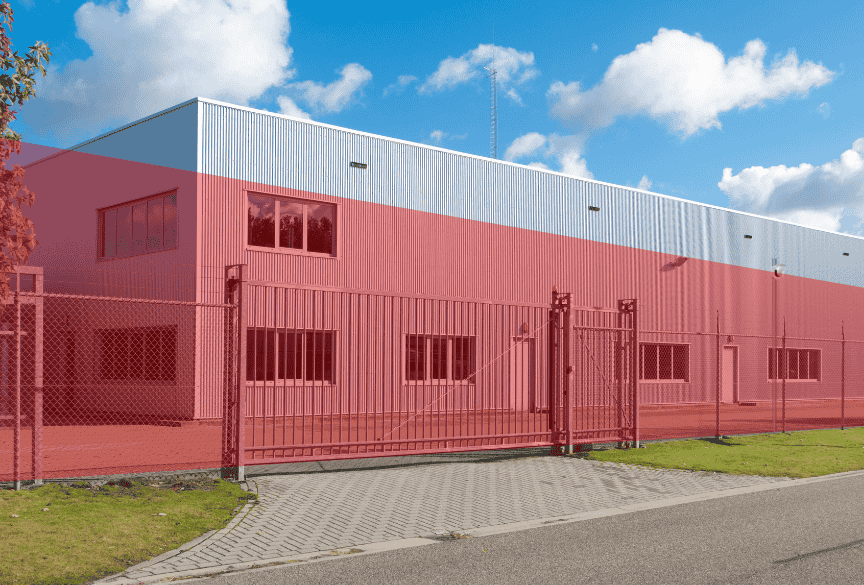

Installed on the perimeter fence, this LiDAR sensor “RLS-3060V” creates a virtual laser wall to detect intrusions with high precision. It covers up to 30 × 60 meters per unit and minimizes false alarms. When triggered, linked CCTV footage instantly appears on the server room monitor for visual confirmation.

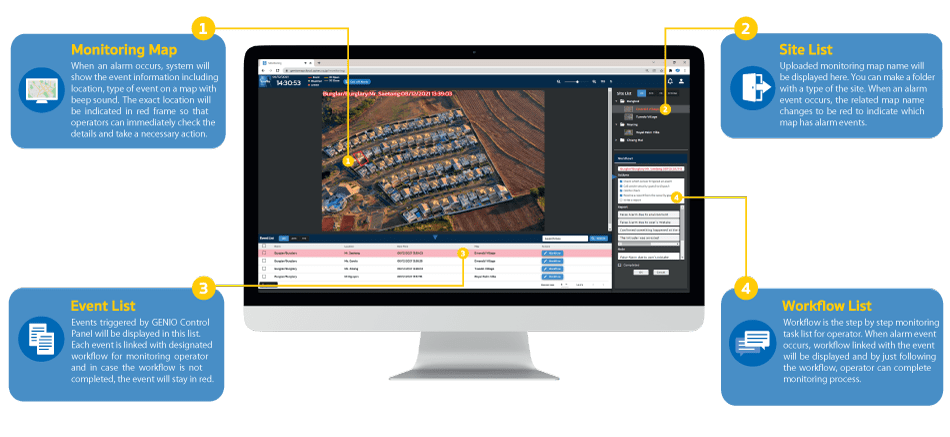

2. Alarm Monitoring Software: GENIO Map
GENIO Map was deployed in the guard room to send alerts simultaneously to both the server room and the guard room located in a separate building. It displays alarm locations on a map on the PC screen, supports pre-configured workflows for incident handling, and records operator actions in real time.
It enables security guards to take early and prompt action without requiring advanced technical skills.
3. Other Devices
- HWC-1B / GENIO Lite Control panel / ARN Gateway for GENIO Map
- ADAM-6060 Remote I/O Module for communication between buildings; server room and guard house, using the same fiber optic network as the CCTV system, eliminating the need for additional cabling.

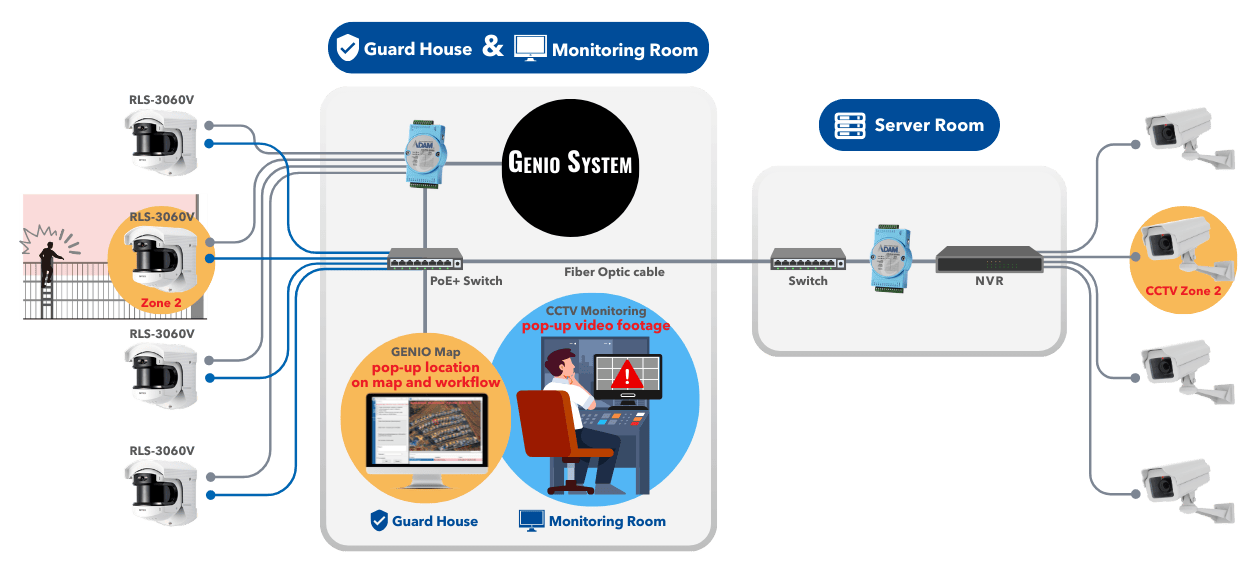

System Configuration
Key Advantages of the OPTEX Solution
1. Reliable Perimeter Intrusion Detection for Data Centers

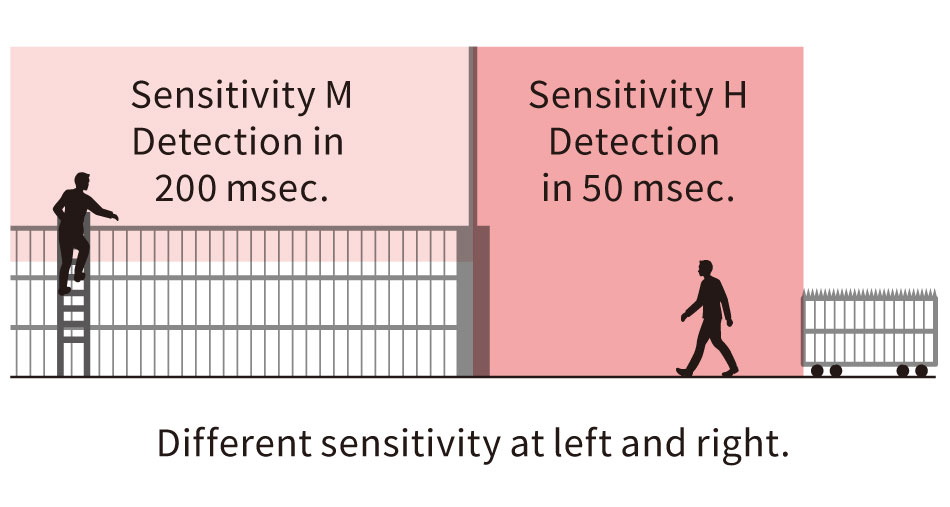

REDSCAN Pro minimizes false alarms caused by environmental factors, ensuring high detection performance day and night. It divides the detection area into eight zones, and the sensitivity can be adjusted according to on-site conditions—for example, high sensitivity for a running intruder and medium for climbing attempts.
2. Flexible System Configuration with Proactive Video Monitoring
OPTEX’s solution integrates sensors with CCTV, NVR, and VMS in multiple ways. It offers optimal configurations tailored to site conditions such as building layout, budget, existing CCTV components, wiring challenges, and customer requirements.
3. Seamless integration protocols with video surveillance systems
In this project, relay outputs were used for sensor alarms. REDSCAN Pro also supports protocols like ONVIF, enabling smooth integration and interoperability with CCTV, NVR, VMS, and other security devices.
4. Operational Efficiency with GENIO Map

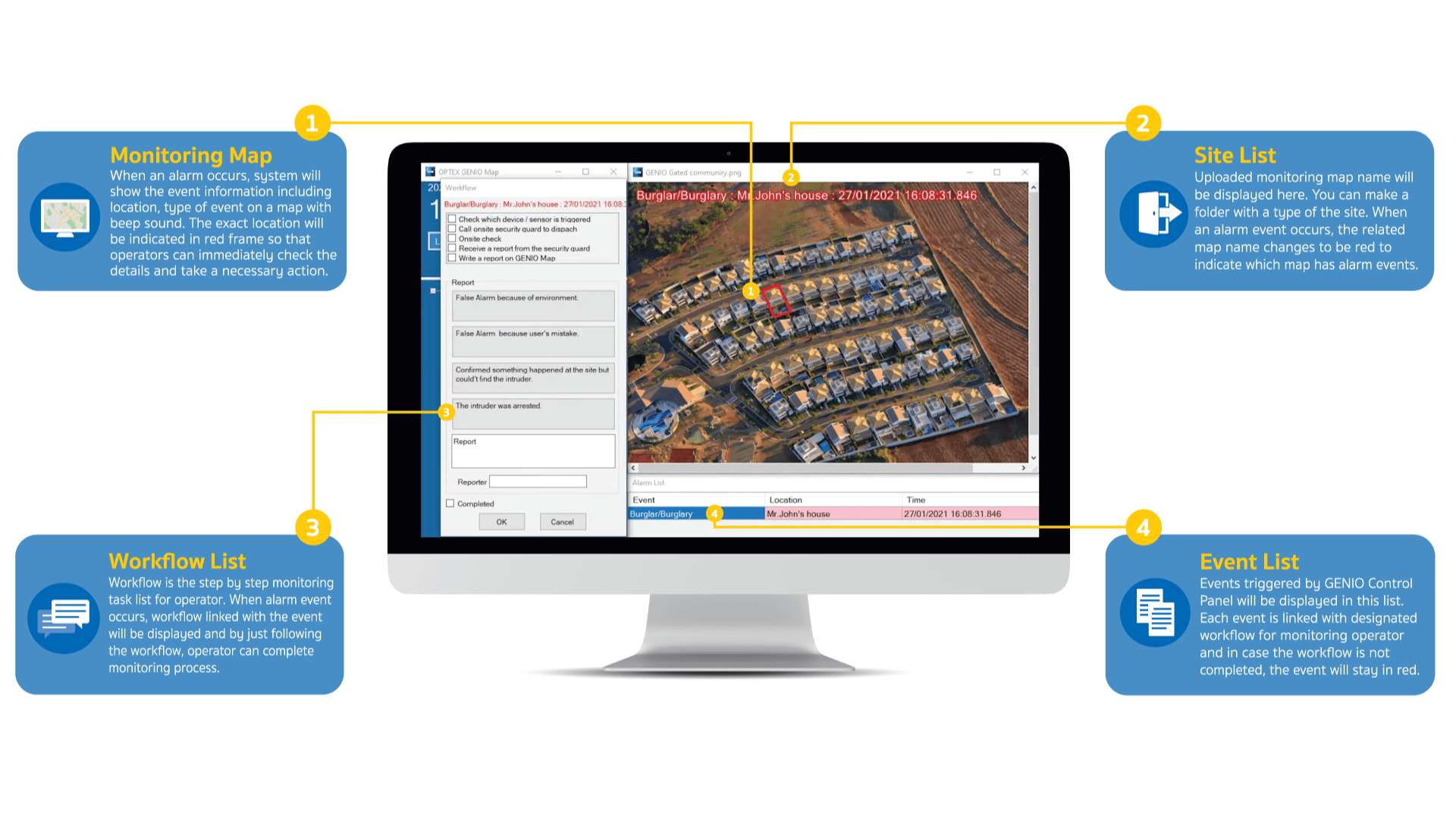

GENIO Map enables security personnel to confirm alarm locations and follow pre-configured workflows for incident handling. Supporting both local and remote monitoring, it centralizes alerts and guides operators through clear steps—ensuring fast, coordinated responses
Summary
With OPTEX’s Proactive Video Monitoring solution, this data center implemented a multi-layered security approach—enhancing perimeter intrusion detection, real-time situational awareness, and rapid incident response. By combining high-accuracy outdoor sensors with CCTV for instant alerts and visual verification, the system enables early detection of unauthorized access and supports fast, coordinated responses, ensuring effective protection of critical information and infrastructure.
