Outdoor Motion Sensors

You are here:

OPTEX outdoor motion sensors are designed to protect “middle areas,” which are the boundaries between buildings and the perimeter, such as

  • Near entrances and back doors
  • Near windows
  • Garage
  • Garden and back yard
  • Pathway
  • Balcony

By installing motion sensors for these area, it becomes possible to trigger an alarm as soon as an intruder approaches the building, allowing for earlier response timing. This concept of early warning provides an opportunity to take action before the intruder enters the building.

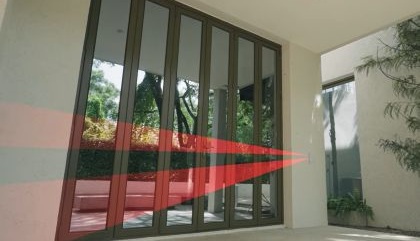

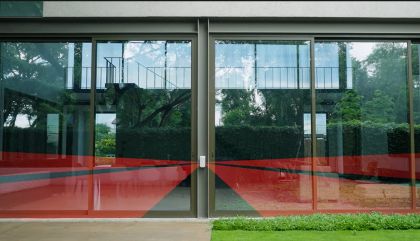

● Window

● Balcony

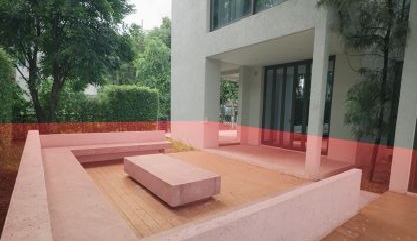

● Back side of building

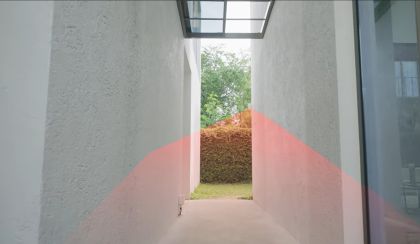

● Pathway

OPTEX offers a wide range of products categorized by detection angle, distance, and functions, making it easy to find the right sensor for your installation environment.

If you would like to learn the basics of motion sensors, please see below:
▶ What is a Motion Sensor?
How to choose Your Most Suitable Motion Sensor? (Product Selection Guide)


Product Lineup



BXS-AM

  • BOUNDARY OUTDOOR PIR DETECTOR
  • ● Detection Range 24m, 12 m on each side (Left and Right)
  • ● Adjustable to 5 ranges (2.5m, 3.5m, 6.0m, 8.5m, 12.0m)
  • ● IR digital anti-masking function
  • ● 4 PIR technology
  • ● IP 55
Read more

BXS-R

  • BATTERY OPERATED BOUNDARY OUTDOOR DETECTOR
  • ● 4 PIR technology
  • ● 24m (80 ft.) 12 m (40 ft.) on each side adjustable
  • ● Individual detection area and sensitivity setting
  • ● Extreme high detection mode
  • ● Individual signal outputs (right / left)
  • ● IP55
Read more

BXS-RAM

  • BATTERY OPERATED BOUNDARY OUTDOOR DETECTOR
  • ● IR digital anti-masking function
  • ● 4 PIR technology
  • ● 24m (80 ft.) 12 m (40 ft.) on each side adjustable to 5 ranges (2.5m, 3.5m, 6.0m, 8.5m, 12.0m)
  • ● Individual detection area and sensitivity setting
  • ● IP 55
Read more

BXS-ST

  • BOUNDARY OUTDOOR PIR DETECTOR
  • ● Detection Range 24m, 12 m on each side (Left and Right)
  • ● Adjustable to 5 ranges (2.5m, 3.5m, 6.0m, 8.5m, 12.0m)
  • ● 4 PIR technology
  • ● IP55
Read more

FTN-AM

  • Window & Balcony Outdoor PIR
  • ● Active IR digital anti-masking
  • ● 5m/2m narrow range
  • ● 190° horizontal flexibility
  • ● Enhanced pet immunity
  • ● IP 55
Read more

FTN-R

  • Window & Balcony Outdoor PIR
  • ● Complete battery operation
  • ● 5m/2m narrow range
  • ● 190° horizontal flexibility
  • ● Enhanced pet immunity
  • ● IP 55
Read more

FTN-R-PT(P1)

  • Window & Balcony Outdoor PIR
  • ● Complete battery operation
  • ● 5m/2m narrow range
  • ● 190° horizontal flexibility
  • ● Enhanced pet immunity
  • ● Super Multi Dimension Analysis Logic
  • ● Double conductive shielding
  • ● Intelligent AND logic
  • ● IP 55
Read more

FTN-RAM

  • BATTERY OPERATED COMPACT OUTDOOR DETECTOR
  • ● Active IR digital anti-masking
  • ● Complete battery operation
  • ● 5m/2m narrow range
  • ● 190° horizontal flexibility
  • ● Enhanced pet immunity
  • ● IP 55
Read more

FTN-ST

  • COMPACT OUTDOOR PIR DETECTOR
  • ● 5m/2m narrow range
  • ● 190° horizontal flexibility
  • ● Enhanced pet immunity
  • ● Double conductive shielding
  • ● IP 55
Read more

HX-40

  • HIGH MOUNT OUTDOOR PIR DETECTOR
  • ● Mounting height 2.5-3m
  • ● Detection range 12 m. 90° wide
  • ● Intelligent AND detection logic
  • ● Vegetation sway analysis logic
  • ● Double conductive shielding
  • ● Ideal detection area setting
  • ● IP 55
Read more

HX-40AM

  • HIGH MOUNT OUTDOOR PIR DETECTOR
  • ● Mounting height 2.5-3m
  • ● Detection range 12 m. 90° wide
  • ● Active IR digital anti-masking
  • ● Intelligent AND detection logic
  • ● Double conductive shielding
  • ● IP 55
Read more

HX-40RAM

  • BATTERY OPERATED HIGH MOUNT OUTDOOR PIR DETECTOR
  • ● Mounting height 2.5-3m
  • ● Detection range 12 m. 90° wide
  • ● Active IR digital anti-masking
  • ● Intelligent AND detection logic
  • ● Double conductive shielding
  • ● IP 55
Read more

HX-80N

  • LONG AND NARROW RANGE HIGH MOUNT OUTDOOR DETECTOR
  • ● PIR Coverage 24.0 m × 2.0 m narrow / 20 zones
  • ● PIR Distance limit 6.5 m, 10.0 m, 13.0 m, 18.0 m
  • ● Intelligent AND logic with unique pyro-element
  • ● Slope Friendliness
  • ● IP 55
Read more

HX-80NAM

  • LONG AND NARROW RANGE HIGH MOUNT OUTDOOR DETECTOR
  • ● PIR Coverage 24.0 m × 2.0 m narrow / 20 zones
  • ● PIR Distance limit 6.5 m, 10.0 m, 13.0 m, 18.0 m
  • ● Active IR digital anti-masking
  • ● Intelligent AND logic with unique pyro-element
  • ● Slope Friendliness
  • ● IP 55
Read more

HX-80NRAM

  • LONG AND NARROW RANGE HIGH MOUNT OUTDOOR DETECTOR
  • ● PIR Coverage 24.0 m × 2.0 m narrow / 20 zones
  • ● PIR Distance limit 6.5 m, 10.0 m, 13.0 m, 18.0 m
  • ● Battery Operated model
  • ● Active IR digital anti-masking
  • ● Intelligent AND logic with unique pyro-element
  • ● IP 55
Read more

LX-402

  • OUTDOOR PIR DETECTOR
  • ● Detection Range 12m x 15m 120° wide
  • ● Double conductive shielding
  • ● Selectable detection patterns (pet alley or multi-level)
  • ● Area-masking strips
  • ● Day & night modes
  • ● IP 54
Read more

LX-802N

  • LONG AND NARROW OUTDOOR PIR DETECTOR
  • ● Long and Narrow Range 24m x 2m
  • ● Double conductive shieldings
  • ● Selectable detection patterns (pet alley or multi-level)
  • ● Sensitivity selection switch (high, mid and low)
  • ● Day & night modes
  • ● IP54
Read more

QXI-DT

  • WIDE ANGLE OUTDOOR & INDOOR PIR DETECTOR/MICROWAVE COMBINATION DETECTOR
  • ● Detection area: 12 m (40 ft.) x 120 degrees (wide)
  • ● Selectable Mounting Height & Pattern (Multi-Level: 2.2 to 2.7 m, Pet alley: 0.8 to 1.2 m)
  • ● SMDA logic for advanced temperature compensation and environmental noise immunity
  • ● Double conductive shielding against bright light disturbance
  • ● Water and dustproof IP54 protection
Read more

QXI-R

  • BATTERY OPERATED WIDE ANGLE OUTDOOR & INDOOR PIR DETECTOR
  • ● Detection area: 12 m (40 ft.) x 120 degrees (wide)
  • ● Selectable Mounting Height & Pattern (Multi-Level: 2.2 to 2.7 m, Pet alley: 0.8 to 1.2 m)
  • ● SMDA logic for advanced temperature compensation and environmental noise immunity
  • ● Double conductive shielding against bright light disturbance
  • ● Water and dustproof IP54 protection
Read more

QXI-RDT

  • BATTERY OPERATED WIDE ANGLE OUTDOOR & INDOOR PIR/MICROWAVE COMBINATION DETECTOR
  • ● Detection area: 12 m (40 ft.) x 120 degrees (wide)
  • ● Selectable Mounting Height & Pattern (Multi-Level: 2.2 to 2.7 m, Pet alley: 0.8 to 1.2 m)
  • ● SMDA logic for advanced temperature compensation and environmental noise immunity
  • ● Double conductive shielding against bright light disturbance
  • ● Water and dustproof IP54 protection
Read more

QXI-ST

  • WIDE ANGLE OUTDOOR & INDOOR PIR DETECTOR
  • ● Detection area: 12 m (40 ft.) x 120 degrees (wide)
  • ● Selectable Mounting Height & Pattern (Multi-Level: 2.2 to 2.7 m, Pet alley: 0.8 to 1.2 m)
  • ● SMDA logic for advanced temperature compensation and environmental noise immunity
  • ● Double conductive shielding against bright light disturbance
  • ● Water and dustproof IP54 protection & UV resistant ASA body
Read more

SIP-3020-IP/4020-IP/404-IP

  • REDWALL-V series – Medium-Range Synthesized Intelligent PIR
  • ● IP connection
  • ● Intelligent PIR Detection System
  • ● Anti-vandalism functions
  • ● Independent sensitivity selector for near/far areas
Read more

SIP-3020/5 SIP-4010/5 SIP-404/5

  • REDWALL-V: Medium Range with creep zone Synthesized Intelligent PIR
  • ● Intelligent PIR Detection System
  • ● Built-in creep zone detector (Double dual pyro-elements)
  • ● Anti-vandalism functions
  • ● Independent sensitivity selector for creep/near/far areas
Read more

SIP-3020/SIP-4010/SIP-404

  • REDWALL-V Medium Range Synthesized Intelligent PIR
  • ● Intelligent PIR Detection System
  • ● Anti-vandalism functions
  • ● Independent sensitivity selector for near/far areas
  • ● Detection logic selector
Read more

SIP-5030-IP/100-IP

  • REDWALL-V: Long Range with creep zone Synthesized Intelligent PIR
  • ● IP connection
  • ● Intelligent PIR detection system
  • ● Built-in creep zone detector (Double dual pyro-elements)
  • ● Anti-vandalism functions
Read more

SIP5030/SIP-100

  • REDWALL-V: Long Range with creep zone Synthesized Intelligent PIR
  • ● Intelligent PIR detection system
  • ● Built-in creep zone detector (Double dual pyro-elements)
  • ● Anti-vandalism functions
  • ● Independent sensitivity selector for creep/near/far areas
  • ● Independent N.C. and N.O. output for main area SIP-5030
Read more

VXI-AM

  • WIDE ANGLE OUTDOOR PIR DETECTOR
  • ● Active IR anti-masking for detecting covering objects
  • ● 12 m (40 ft.) by 90-degree flexible detection pattern adjustable to 5 ranges
  • ● SMDA logic for advanced temperature compensation and environmental noise immunity
  • ● Easy masking for overspill prevention
  • ● IP 55
Read more

VXI-DAM-X5

  • WIDE ANGLE OUTDOOR PIR/MICROWAVE COMBINATION DETECTOR
  • ● 12 m by 90-degree flexible detection pattern adjustable to 5 ranges
  • ● Tough mod dual technology based on OPTEX gold-plated microwave module
  • ● Active IR anti-masking for detecting covering objects
  • ● SMDA logic for advanced temperature compensation and environmental noise immunity
  • ● IP 55
Read more

VXI-R

  • BATTERY OPERATED WIDE ANGLE OUTDOOR PIR DETECTOR
  • ● 12 m by 90 degree flexible detection pattern adjustable to 5 ranges
  • ● SMDA logic
  • ● Easy masking for over spill prevention
  • ● Double conductive shielding
  • ● IP55
Read more

VXI-RAM

  • BATTERY OPERATED OUTDOOR PIR DETECTOR
  • ● 12 m by 90-degree flexible detection pattern adjustable to 5 ranges
  • ● Active IR anti-masking for detecting covering objects
  • ● SMDA logic
  • ● Conduit/TX-battery case for both wired and wireless-ready models
  • ● IP 55
Read more

VXI-RDAM

  • Battery Operated Outdoor PIR Detector
  • ● 12 m by 90-degree flexible detection pattern adjustable to 5 ranges
  • ● Super low energy circuit for maximum battery life expectancy
  • ● Active IR anti-masking for detecting covering objects
  • ● Tough mod dual technology based on OPTEX gold-plated microwave module
  • ● IP 55
Read more

VXI-ST

  • WIDE ANGLE OUTDOOR PIR DETECTOR
  • ● 12 m (40 ft.) by 90-degree flexible detection pattern adjustable to 5 ranges
  • ● SMDA logic for advanced temperature compensation and environmental noise immunity
  • ● Easy masking for overspill prevention
  • ● Double conductive shielding against bright light disturbance
  • ● IP 55
Read more

VXS-AM

  • WIDE ANGLE OUTDOOR PIR DETECTOR
  • ● Active IR anti-masking for detecting covering objects
  • ● 12 m by 90-degree flexible detection pattern adjustable to 5 ranges
  • ● SMDA logic for advanced temperature compensation and environmental noise immunity
  • ● Easy masking for overspill prevention
  • ● IP 55
Read more

VXS-DAM

  • WIDE ANGLE OUTDOOR PIR/ MICROWAVE COMBINATION DETECTOR
  • ● Active IR anti-masking for detecting covering objects
  • ● 12 m by 90-degree flexible detection pattern adjustable to 5 ranges
  • ● SMDA logic for advanced temperature compensation and environmental noise immunity
  • ● Active IR anti-masking for detecting covering objects
  • ● IP 55
Read more

VXS-RAM

  • BATTERY OPERATED WIDE ANGLE OUTDOOR DETECTOR
  • ● Active IR anti-masking for detecting covering objects
  • ● 12 m (40 ft.) by 90-degree flexible detection pattern adjustable to 5 ranges
  • ● SMDA logic for advanced temperature compensation and environmental noise immunity
  • ● Easy masking for overspill prevention
  • ● IP 55
Read more

VXS-RDAM

  • BATTERY OPERATED PIR/ MICROWAVE COMBINATION WIDE ANGLE OUTDOOR DETECTOR
  • ● Active IR anti-masking for detecting covering objects
  • ● 12 m (40 ft.) by 90-degree flexible detection pattern adjustable to 5 ranges
  • ● SMDA logic for advanced temperature compensation and environmental noise immunity
  • ● Easy masking for overspill prevention
  • ● IP 55
Read more

WXI-AM

  • WIDE ANGLE OUTDOOR PIR DETECTOR
  • ● Active IR anti-masking for detecting covering objects
  • ● 12 m (40 ft.) by 180-degree flexible detection pattern adjustable to 5 ranges
  • ● SMDA logic for advanced temperature compensation and environmental noise immunity
  • ● Easy masking for overspill prevention
  • ● IP 55
Read more

WXI-R

  • WIDE ANGLE OUTDOOR PIR DETECTOR
  • ● 12 m (40 ft.) by 180-degree flexible detection pattern adjustable to 5 ranges
  • ● Conduit/TX-battery case for both wired and wireless-ready models
  • ● SMDA logic for advanced temperature compensation and environmental noise immunity
  • ● Easy masking for overspill prevention
  • ● IP 55
Read more

WXI-RAM

  • WIDE ANGLE OUTDOOR PIR DETECTOR
  • ● Active IR anti-masking for detecting covering objects
  • ● 12 m (40 ft.) by 180-degree flexible detection pattern adjustable to 5 ranges
  • ● Conduit/TX-battery case for both wired and wireless-ready models
  • ● SMDA logic for advanced temperature compensation and environmental noise immunity
  • ● Easy masking for overspill prevention
  • ● IP 55
Read more

WXI-ST

  • WIDE ANGLE OUTDOOR PIR DETECTOR
  • ● 12 m (40 ft.) by 180-degree flexible detection pattern adjustable to 5 ranges
  • ● SMDA logic for advanced temperature compensation and environmental noise immunity
  • ● Easy masking for overspill prevention
  • ● IP 55
Read more
